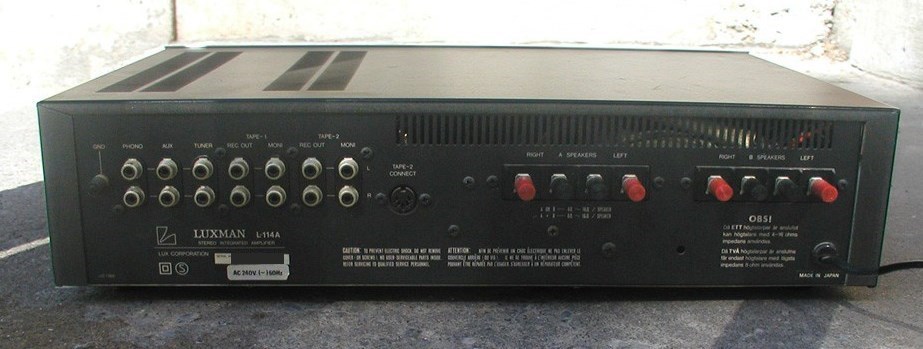

Luxman L-114A amplifier



General:

Around 1983 Luxman company came with its L-114A amplifier.





Owners manual:

click here to download the owners manual of the L-114A



special futures:



Specifications Luxman L114A

Power output: 48 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.02%

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 92dB (MM), 100dB (line)

Remarks: Duo-Beta circuits

Dimensions: 438 x 306 x 111mm

Weight: 8.1kg







Schematic:

click here to download the service manual of the L-114A



Interior ^

The power transistors ^



Modifications:

You may replace some capacitors and resistors in the power supply and power rail.




Sound:

The sound is good.




L-114a with T-111 on top.





construction
