Luxman LV-111 (LV-110) amplifier



General:

Around 1994 Luxman company came with its LV-111 amplifier.

The LV-110 is electrically the same as the LV-111, the LV-110 has less output power.



Owners manual:

click here to download the owners manual of the LV-111 (LV-110)



special futures:

Specifications:

Distortion (THD 20Hz - 20kHz) < 0.04%
at continuous output per channel: 45W
Speaker impedance: 8~16ohms
Signal/noise ratio: 95dB power amp. section
8 x RCA input, rec. output in back, phono input
Dimension: 435(W) x 330(D) x 135(H)

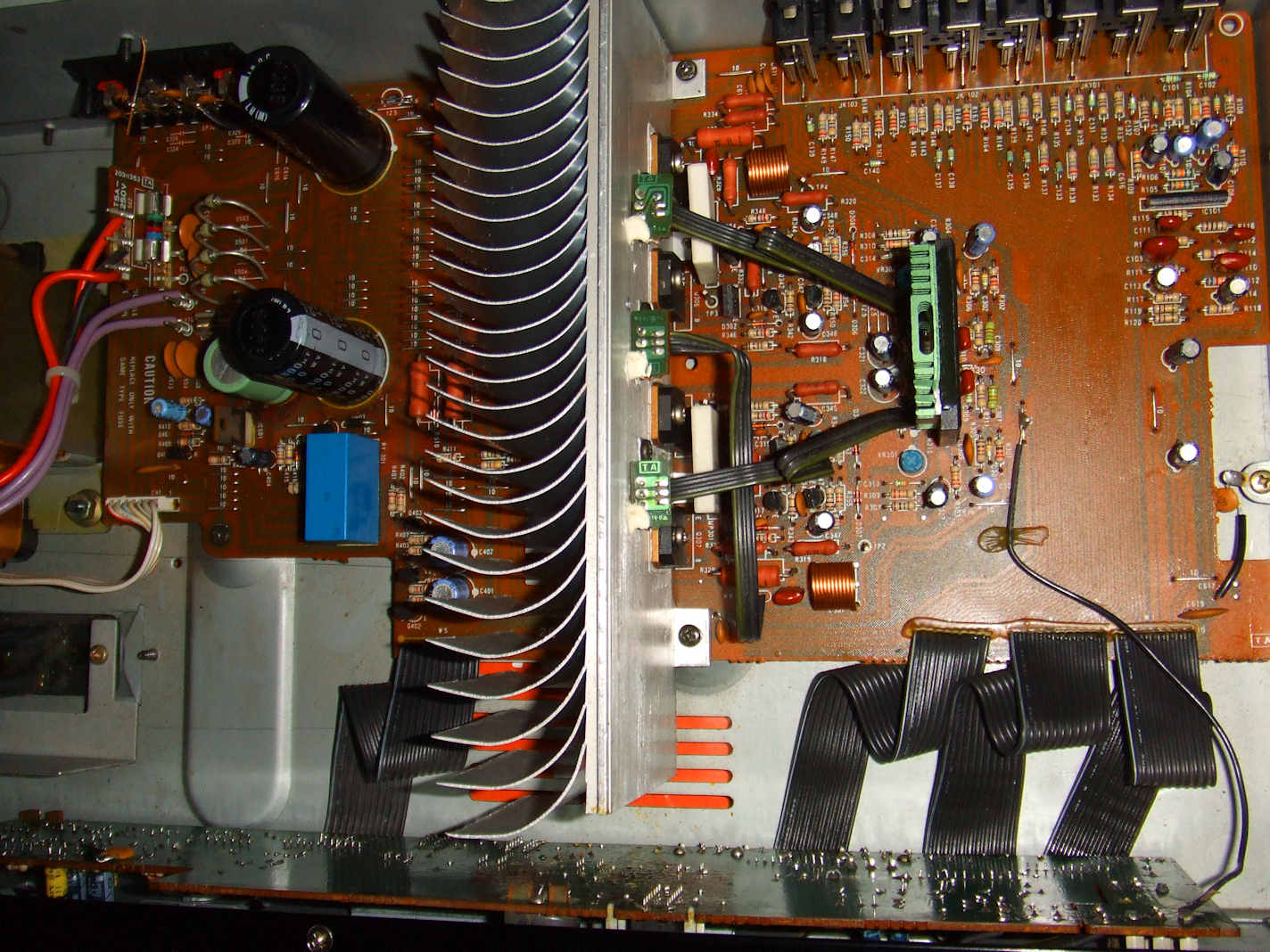

interior amp section ^



Schematic:

click here to download the service manual of the LV-111 (LV-110)



interior power supply ^



Modifications:

You may replace some capacitors and resistors in the power supply and power rail.
This amplifier uses a STK IC module in the driver section of the power amp.
This is the same setup as in the Luxman LV-112, heatsink this STK IC in the LV-111 (LV-110).

interior front ^



   schematics of the power section: the discrete output part on the German HiFi forum: http://www.hifi-forum.de



Sound:

The sound is good.







Hans Hilberink - PE1MMK 2003 - Last update: 10-01-2016.
