Aiwa-Wega PV-210 power amplifier



General:

Around 1980 issued mini power amplifier  made by 'Aiwa Electronics' company Japan.



Front ^

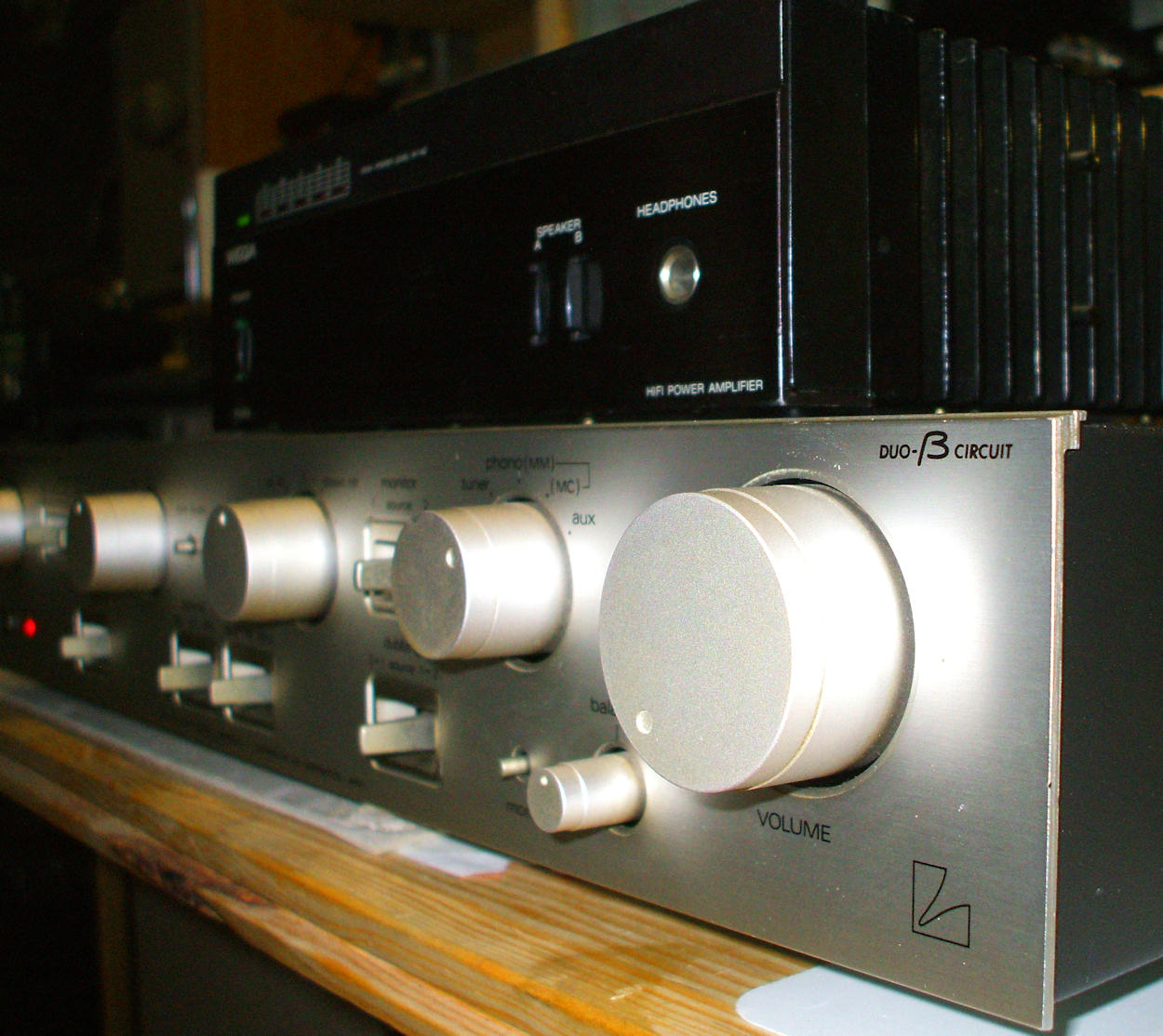

Front without hood and connected to a Luxman C-120A ^



Owners manual:

not yet available

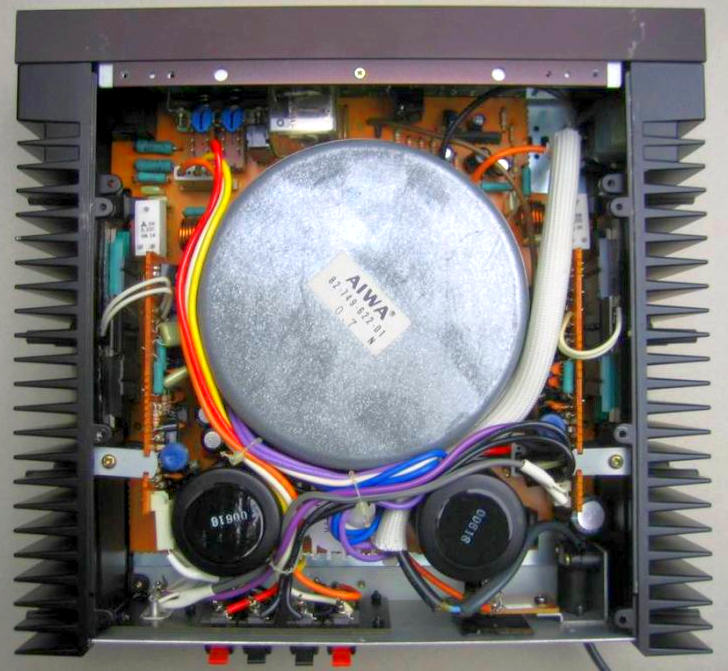

Interior, very well built and very good pcb's ^




Special futures:


Light and small footprint amp. Wood case. Well build and good parts used.
This amp employs all silicon transistors and 2x STK power packs STK0040 type II.
There is also a version with 4 power transistors, but there is no "Bridge function switch" in that version.

This amp is a fine and compact power pack, that is reliable and easy to transport, works on almost any pre-amp.
I have tested it on a Quad 33, a Luxman C120A, a Sansui, and several others: always works fine.


Version 2 ^



Specifications:

Output power RMS: per channel: 40 Watts, music power 70 Watts, Bridged power 80 Watts.
Distortion (THD 20Hz - 20kHz) < 0.02% at continuous output per channel.
Speaker impedance: 4 ~ 16ohms
Signal/noise ratio: 105dB power amp. section
1 x RCA input.
1x speaker output terminal.



Schematic:

click here for the service manual of the PV210 in PDF.

This amp has very good speaker-protection circuits with 2 relays employed.




Modifications:

You may replace some capacitors in the power supply and power rail.
Check DC offset.

Click here to download the info on the STK module STK0040II




Made by Aiwa company Japan.



Sound:

The sound is very good for such a small power amplifier.







Hans Hilberink - PE1MMK 2003 - Last update: 11-02-2020.
