Luxman M2000 / M4000 / C1000 / C1010 power/pre amplifiers

C1000 pre amp.



General:

Around 1975 the Luxman company Japan came with its "high quality" power amplifier M4000 on the audio market.
This amplifier set was a modern design with excelent characteristics.
The M4000 was one of the best power amps ever made.

M2000 ^

The couple C1010 & M2000 V

C1010 ^

Front C1010 ^ detail

Front C1010 ^ detail 2

Meters of M2000 ^

Control of the M2000 ^



Special futures:

The M4000 has power meters on front. Incorporates separated power supplies.



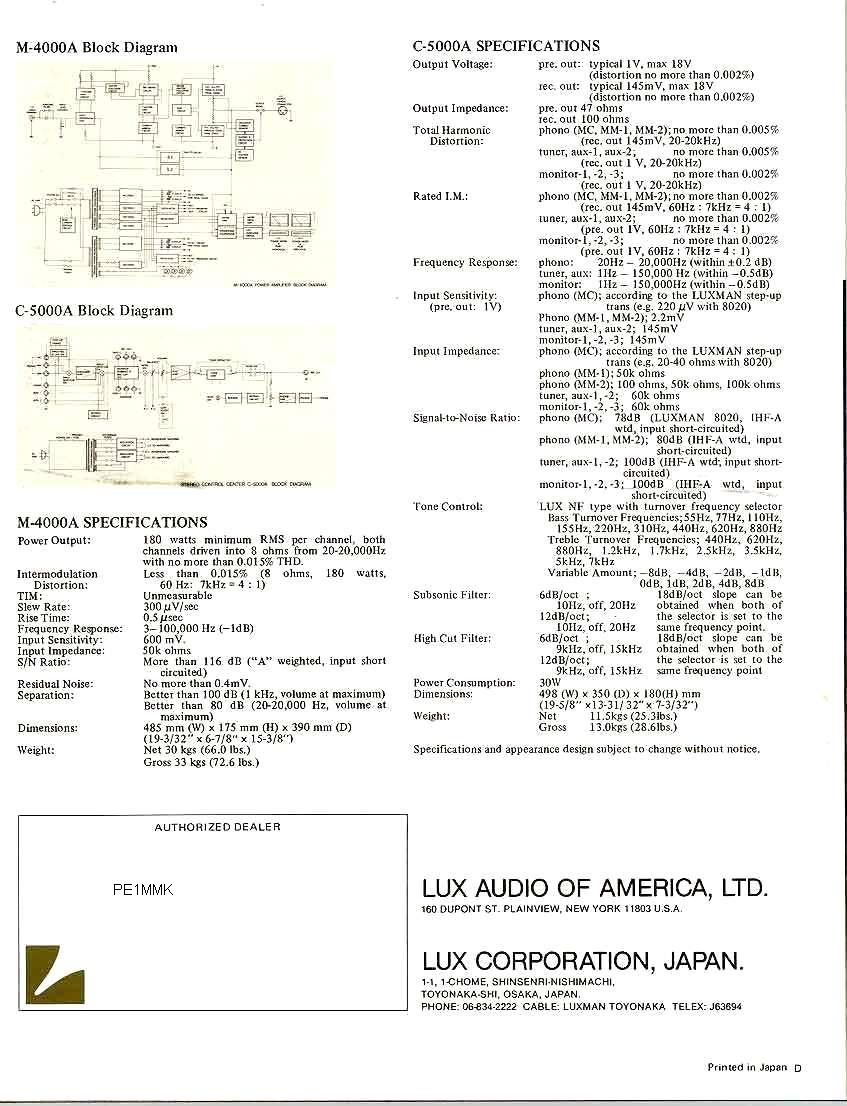

Schematic:

Download the service manual in PDF of the M4000 here.

Download the schematic diagram in PDF of the C1000 here.



Sound:

The sound of this amp is a pleasure to listen to.

Test by Yoshiro Uesugi Labs 1976 of the M4000 & C1000 and its competitors. Click on the files in PDF to download.

FilePart1-Yoshiro Uesugi Labs 1976 test
FilePart2-Yoshiro Uesugi Labs 1976 test
FilePart3-Yoshiro Uesugi Labs 1976 test



Modifications:

The cleaning of the volume control,

Short manual by Keith how to clean this device,

I thought I would take a picture of the Noble volume control in my C-1000 that I had apart for cleaning today.
I think there are lots of these out there in the L-100/L-110/C1000 and C-1010.

The knob goes on the other side of the lubricated shaft to the left of the two pots with wires.
The first pot has the wipers removed and the second does not. The wiper is below the second pot in the picture.

The assembly is the front knob section with the lubricated click stop mechanism, then an interlocking empty spacer,
then the first pot followed by another spacer then the second pot which is backed by an thin brass sheet.
This is followed with the third spacer and the backing plate shown in the lower left.

For cleaning these can be taken apart and the wiper can come out of the pot section as it has the four tanged fingers that fit the hole in the pot.

There was very little but some noise in it as the off position. You can see the individual sections for the calibrated, click-stopped volume adjustment.

I also did the switches, was a pleasure to work on such well built gear.





© Hans Hilberink - PE1MMK ® & Keith & Jan Hubáček, 2003 - Last update: 12-07-2015.
