General:

Marantz amplifier made around 1990 that used to be a competitor to the Luxmans.

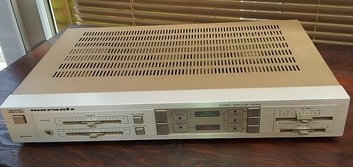

Front



Detail

Special futures:

This is a nice slim amplifier, with 33 Watts RMS per channel power capacity and after upgrade it will give approx. 2x 40 Watts RMS.

The amp is compact and well built and has the typical Marantz looks.



User Manual:

Not yet available



Schematic:

Click here to download the service manual in PDF format





Modifications:

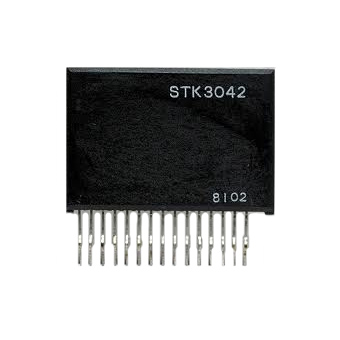

Heatsink the STK 3042 driver module for extended life of the amplifier.







Sound:

Good sound amplifier, well built and good parts used, it uses a Sanyo STK3042 module.
